Translucent tubes

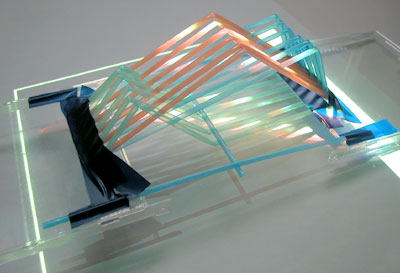

This model tests to possibility of using translucent plastics (straw in this
case) for picking up the projection.

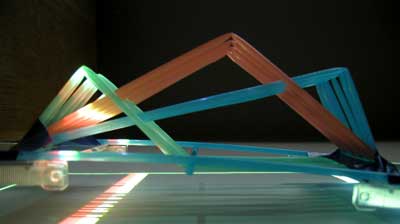

The advantage is that this model glows in al directions if it is illuminated
from the top. This way it can produce
spatial effects, so one can enter enter such spaces - not only observe them
from above.
The geometry follows the spatial loom concept,
as we can see on the left view, the various tubes do not cover
each other, and form three surfaces at different heights.

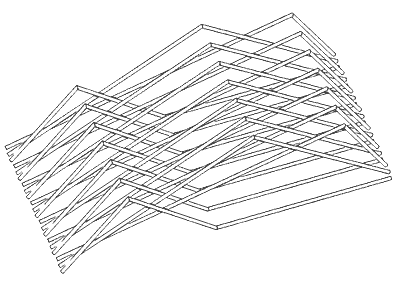

![]() Axonometric view |
![]() Front view |

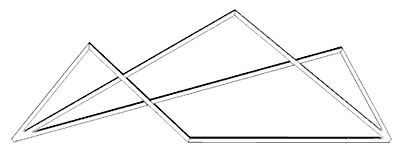

![]() Left view |

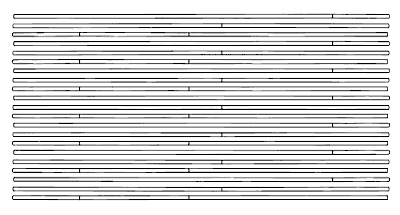

![]() Top view |
![]() |
![]() |
